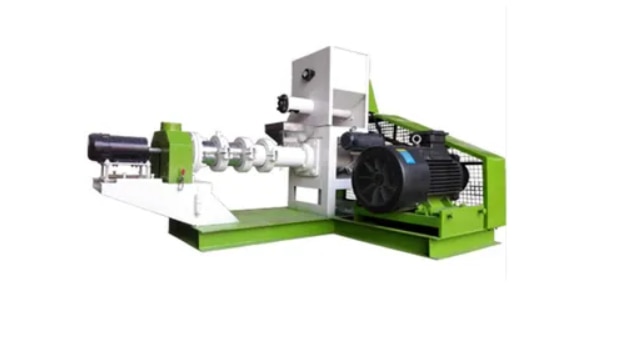

Floating Fish Feed Pallet Machine

Capacity 50 kg per hr

Motor Power 10 hp

Feed Type Dry Type

Weight 350KG

Dimensions (LxWxH) 1500*1400*1250

Brand Vinspire

Model Name/Number VAPL-FFP-7.5

Minimum order quantity: 1 Piece

VINSPIRE AGROTECH I PVT LTD are professional in offering Floating fish feed pellet machine, which are available in various sizes and specifications so that our clients can customize the machine as per their requirement. These machines can easily handle high pressure and temperature that makes it worth demanding. Moreover, these are cost effective and are made using rigid materials.

Raw Material Application for Fish Feed Pellet Machine:

Adopts corn flour, fish meal, bone meal, meat meal, soyabean powder etc as raw materialsSmall

Flowchart of Floating Fish Feed Pellet Line:

Mixing system---Extrusion system----Drying system----Flavoring system--Packing system

Structure&principle of Fish Feed Pellet Machine:

Three motors: Main motor + feeding motor + cutting motor

Working principle: Put the material into feeding device. The material will be extruded and expanded by the screw shaft with high pressure and temperature to make the material fully cooked and sterilized. Then the expanded material will be formed into different shapes through different molds.

We will send sets of molds, spare parts( sleeve, extruding part, cutter, etc,) and tools for free.
